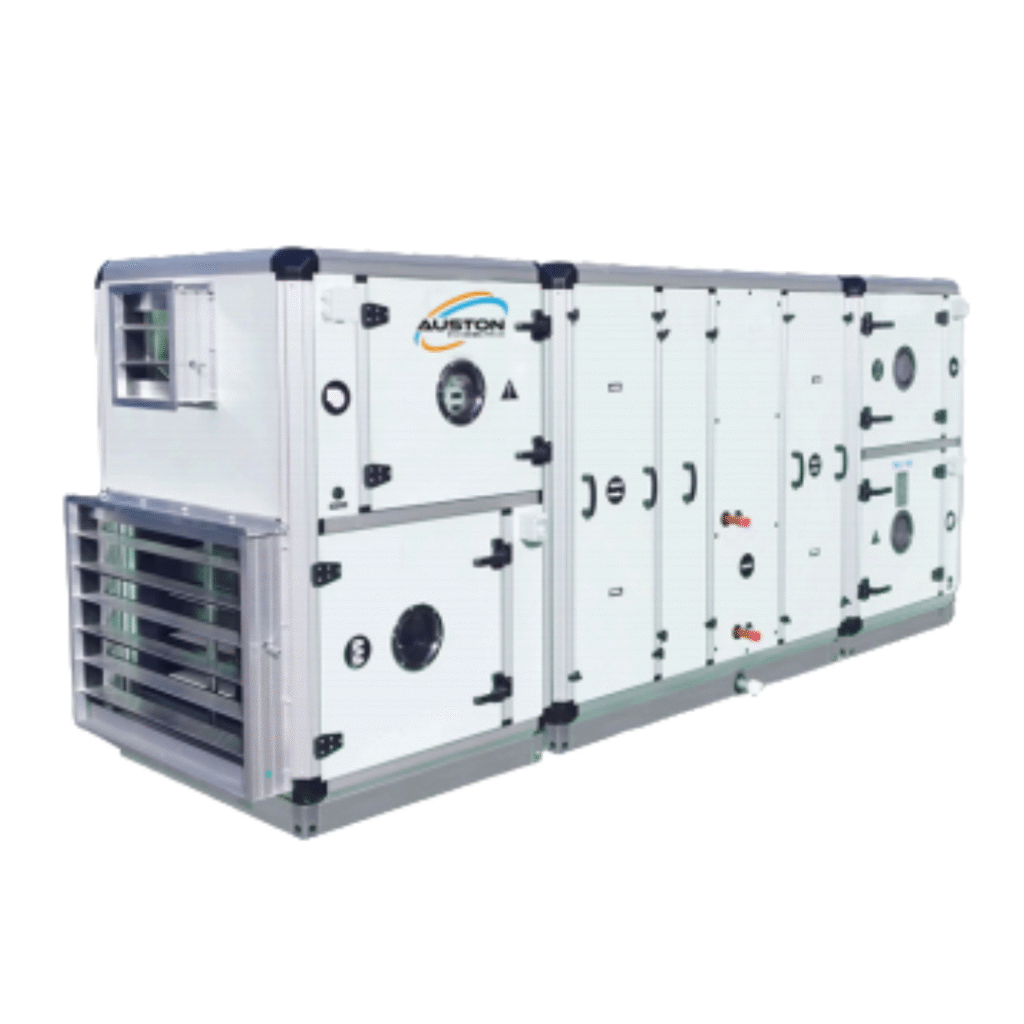

Auston Air Handling Units is one of the best mechanical performances as per EN1886 & are provided with AMCA certified fans for superior performance and UL certified filters for higher dust holding capacity with lower pressure drop. Our customized range offers multiple options for heat exchangers, cooling, heating, filtration and supply options.





Salient Features

  • Energy Efficient IE2/ IE3 , IP -55 protection Electric Motors.
  • High efficiency AMCA certified DIDW centrifugal Fans used for best performance.
  • Casing manufactured with Extuded aluminium profile with & without thermal break.
  • 25mm and 50mm thick Double Skin Panel Construction.
  • Horizontal Floor Mounted AHUs are of pentapost construction with Thermal & Non-Thermal Break Profiles.
  • Casing sheet metal thickness shall range from 0.6mm to 1.0mm as per requirement.
  • Cabinet GI sheets shall be Pre-painted, Powder Coated & GSS.
  • Heat Exchanger coil section provided with SS drain tray.
  • High Performance cooling coil with copper tubes and Aluminium fins.
